Turn Key Engines

Type 1 engines, built to drive.

From 1300cc to 2332cc — Beetle, Ghia, Trikes, Split & T2 Bus. Single carb, dual carbs, fuel injection or turbo. Every engine hand built, hot run and tested before it leaves us.

Every build, properly tested

Every build is hand built by a professional engine builder. We leak down test, oil pressure & cylinder compression is checked. Hot run for 30 minutes to break in the engine, and check for oil leaks before dispatch. We use quality components throughout for unmatched reliability, with no reused parts compromising the engine's integrity.

All of our engines are blueprinted, with bearing clearances set, piston & ring measurements, end play, little ends etc. checked and set. Compression ratio raised to match the chosen camshaft & a forged dynamically balanced rotating assembly to ensure long life and maximum power.

Great aftersales service and a minimum of 12 months unlimited miles warranty you can rely on should you have any problems down the road. There is no guess work here, just built right. Because we hate warranty returns just as much as you do!

All our engines are suitable for unleaded fuel, and supplied with the remaining engine gasket kit and flywheel fitted. All engine build prices are plus VAT.

Which vehicles do our Type 1 engines fit?

VehicleTypical yearsNotes
VW Beetle & Karmann Ghia1950–1979Direct fit; upright or doghouse cooling options
Splitscreen & T2 Bay Bus1950–1971Type 1 powered splits and early bays
Trikes, buggies & kit cars—We spec carbs, exhaust and gearing to suit
Porsche 356 & 9121948–1969Ask us — Porsche cooling setups available

Previous Turn key builds

10% Sale
2180cc STREET SPECIAL Porsche Cooling Engine GET IN TOUCH FOR PRICES

Part no. AH-TK-001

2180cc STREET SPECIAL Porsche Cooling Engine GET IN TOUCH FOR PRICES

£12,999.00£11,699.10Exclusive of VAT

No exhaust or clutch included

Same as our 2110cc Build, but using 92mm pistons and thick wall barrels for best reliability.

Type 1 engine is the perfect addition to your Beetle, Splitscreen, or Baywindow vehicle (with altered tinware). With Porsche Cooling and quality parts throughout, this engine is built to last and provide top-notch performance. All new parts mean a turn key engine, so no exchange unit is needed. Plus, it can be built into various sizes to suit your intended purpose. The included Forged Crankshaft, Performance Cam kit, Chromoley 200mm Flywheel, HD Gland nut, and forged rods ensure that this engine will exceed your expectations in both power and durability. Contact us for pricing and get your custom-built air-cooled engine today!

  • 218cc STREET SPECIAL - Extra Torque!
  • Forged Crankshaft
  • Performance Cam kit
  • Chromoley 200mm Flywheel
  • HD Gland nut/washer
  • Forged Rocker set
  • Deep sump
  • Chromoly con rods
Full specification

All aspects can be altered to suit vehicle & intended use so please get in touch if you want to alter the specification.

No Clutch or Exhaust is included in the price, as we would need to discuss what system is required.

  • Bolt on rocker covers
  • Distributor clamp
  • Filter & linkage kit
  • Electronic Ignition Distributor
  • Porsche cooling kit
  • Billet pulley kit
  • 40idf Weber carb kit
  • Silicone Ht lead set
  • Extra parts may be required:
  • Exhaust (not included in price)
  • Clutch kit
  • Breather box
  • Built to order item, with a typical waiting time of 3 months.
  • Images show a past build.
  • All engine build prices are plus VAT.
Get a Quote WhatsApp Call
10% Sale
Street Special 2180cc Turnkey Engines Dual 40iDF Weber Carburetors 2026

Part no. AH-TK-002

Street Special 2180cc Turnkey Engines Dual 40iDF Weber Carburetors 2026

£9,699.00£8,729.10Exclusive of VAT

No exhaust or clutch included

2180cc STREET SPECIAL - same as the 2110 but 92mm piston kit, using thick wall barrels for best reliability!

ENGINE CASE: Autolinea Aluminum Super Case, Full Flowed, Shuffle Pinned, Clearance for bigger stroke cranks. (Stronger than the original VW cases)

  • - Not Rebuilt & No Core Needed-
  • DYNAMICALLY BALANCED ROTATING ASSEMBLY IN HOUSE.
  • CRANKSHAFT: 82mm 4340 Chromoly Counter. Weighted, 8 Dowel.
  • RODS: H-Beam or iBeam, ARP Bolts.
  • CAMSHAFT: Engle or Scat with Bolt-on Gear.
  • LIFTERS: To match cam.
  • FLYWHEEL: 8 Dowel Forged Chromoly Lightened.
  • GLAND NUT: Chromoly with Washer.
Full specification

FUELLING: Dual Weber Carburetor Kit, Linkage kit, Manifolds, Chrome Air Cleaners, Ethanol resistant Fuel Hose.

No Clutch or Exhaust is included in the price, as we would need to discuss what system is required.

  • MAIN BEARINGS: Standard Steel Center.
  • ROD BEARINGS: Standard.
  • CAM BEARINGS: Double Thrust.
  • OIL PUMP: 26mm or (30mm on request) with Steel Full Flow Cover.
  • DEEP SUMP: 1.5 Quart.
  • SUMP PLATE: Billet Aluminum with drain plug.
  • HEAD STUDS: Chromoly Studs/Nuts.
  • PISTONS & CYLINDERS: Performance 92mm with Clip Retainers.
  • Thick wall Cylinders.
  • PUSHROD TUBES: Sprung loaded type.
  • HEADS: 40x36.5 Stainless Valves, 3/4" Spark Plug Holes.
  • PUSHRODS: Manton Chromoly.
  • ROCKERS: Forged 1.25 Ratio.
  • VALVE COVER: Bolt-on Aluminium.
  • GASKETS: Elring German kit.
  • TINWARE: Black or Chrome.
  • Doghouse Fan Shroud, Front, Rear, Pulley & Dual Port Cylinder Tins, Breast Plate.
  • CHARGING: 12 Volt Alternator 55 amp, Steel Strap, Welded Fan, Hub kit.
  • PULLEYS: Steel Pulleys & Chrome Nuts.
  • IGNITION: Electronic Ignition Distributor, Clamp, Coil, Silicone Spark Plug Leads.
  • OIL COOLING: Doghouse Oil Cooler, Oil Pressure Switch.
  • EXHAUST AND CLUTCH KITS ARE NOT INCLUDED IN THE PRICE.
  • Please email us stating make/model/year and we can give choices available.
  • UPGRADES AVAILABLE (extra cost)
  • Serpentine Pulley kit.
  • Billet Aluminum Crank Pulley.
  • Billet Fuel Pump Block.
  • Billet Dip Stick.
  • Billet Filler Neck.
  • Bluetooth distributor.
  • Billet distributor clamp.
  • Oil pressure sender.
  • Porsche cooling kit.
  • Breather Tower.
  • Or please ask if you have any specific requirements.
  • SHIPPING AVAILABLE WORLDWIDE (Collection welcome from our base in Nottinghamshire UK)
  • Images show previous builds, your build may vary depending on specification chosen.
  • Engines ship Via Air Freight.
  • EMAIL US FOR A QUOTE
  • All engine build prices are plus VAT.
Get a Quote WhatsApp Call
10% Sale
New 2332cc Turnkey Engines Dual 48IDF Weber Carburetors 2024

Part no. AH-TK-003

New 2332cc Turnkey Engines Dual 48IDF Weber Carburetors 2024

£9,895.00£8,905.50Exclusive of VAT

No exhaust or clutch included

ENGINE CASE: Autolinea Aluminum Super Case, Full Flowed, Shuffle Pinned, Clearance for bigger stroke cranks. (Stronger than the original VW cases)

FUELLING: Dual 48IDF Weber Carburetor Kit, Linkage kit, Manifolds, Air Cleaners, Ethanol resistant Fuel Hose.

  • COMPLETE ALL NEW PARTS TURN KEY ENGINE.
  • - Not Rebuilt & No Core Needed-
  • DYNAMICALLY BALANCED ROTATING ASSEMBLY IN HOUSE.
  • CRANKSHAFT: 84mm 4340 Chromoly Counter Weighted, 8 Dowe, Chevy Journal.
  • RODS: H-Beam Rods, Chevy Journal with 5/16 ARP Bolts.
  • CAMSHAFT: Engle or Scat with Straight cut cam gears.
  • LIFTERS: To match cam.
  • FLYWHEEL: 8 Dowel Forged Chromoly Lightened.
Full specification
  • GLAND NUT: Chromoly with Washer.
  • MAIN BEARINGS: Standard Steel Center.
  • ROD BEARINGS: Standard.
  • CAM BEARINGS: Double Thrust.
  • OIL PUMP: 30mm Cast with Full Flow Cover.
  • DEEP SUMP: 1.5 Quart.
  • SUMP PLATE: Billet Aluminum with drain plug.
  • HEAD STUDS: Chromoly Studs/Nuts.
  • PISTONS & CYLINDERS: Performance 94mm with Clip Retainers.
  • PUSHROD TUBES: Sprung loaded type.
  • HEADS: Stage 2 CNC Ported Performance, 42x37mm Stainless Valves, 3/4" Spark Plug Holes.
  • PUSHRODS: Manton Chromoly.
  • ROCKERS: Forged 1.25 or 1.4 Ratio.(depending on cam chosen)
  • VALVE COVER: Bolt-on Aluminium.
  • GASKETS: Elring German kit.
  • TINWARE: Black or Chrome.
  • Doghouse Fan Shroud, Front, Rear, Pulley & Dual Port Cylinder Tins, Breast Plate.
  • CHARGING: 12 Volt Alternator 55 amp, Steel Strap, Welded Fan, Hub kit.
  • PULLEYS: Billet aluminium Pulleys (Steel Centre crank pulley) & billet Nuts.
  • IGNITION: 123 Ignition Distributor, Clamp, Coil, Silicone Spark Plug Leads.
  • OIL COOLING: Doghouse Oil Cooler, Oil Pressure Switch.
  • EXHAUST AND CLUTCH KITS ARE NOT INCLUDED IN THE PRICE.
  • Please email us stating make/model/year and we can give choices available.
  • UPGRADES AVAILABLE:
  • Black Laser Aluminum Crank Pulley.
  • Billet Fuel Pump Block.
  • Billet Dip Stick.
  • Billet Filler Neck.
  • Bluetooth distributor.
  • Billet distributor clamp.
  • Oil pressure sender.
  • Porsche cooling kit.
  • Breather Tower.
  • Forged Pistons recommended for large cam profiles, along with Total seal rings.
  • Or please ask if you have any specific requirements.
  • SHIPPING AVAILABLE WORLDWIDE (Collection welcome from our base in Nottinghamshire UK)
  • Images show previous builds, your build may vary depending on specification chosen.
  • Engines ship Via Air Freight.
  • EMAIL US FOR A QUOTE
Get a Quote WhatsApp Call
10% Sale
New 2275cc Turnkey Engines Dual 48IDF Weber Carburetors 2024-1

Part no. AH-TK-004

New 2275cc Turnkey Engines Dual 48IDF Weber Carburetors 2024-1

£9,680.00£8,712.00Exclusive of VAT

No exhaust or clutch included

ENGINE CASE: Autolinea Aluminum Super Case, Full Flowed, Shuffle Pinned, Clearance for bigger stroke cranks. (Stronger than the original VW cases)

FUELLING: Dual 48IDF Weber Carburetor Kit, Linkage kit, Manifolds, Air Cleaners, Ethanol resistant Fuel Hose.

  • COMPLETE ALL NEW PARTS TURN KEY ENGINE.
  • - Not Rebuilt & No Core Needed-
  • DYNAMICALLY BALANCED ROTATING ASSEMBLY IN HOUSE.
  • CRANKSHAFT: 82mm 4340 Chromoly Counter. Weighted, 8 Dowel.
  • RODS: H-Beam or iBeam, ARP Bolts.
  • CAMSHAFT: Engle or Scat with Straight cut cam gears.
  • LIFTERS: To match cam.
  • FLYWHEEL: 8 Dowel Forged Chromoly Lightened.
Full specification
  • GLAND NUT: Chromoly with Washer.
  • MAIN BEARINGS: Standard Steel Center.
  • ROD BEARINGS: Standard.
  • CAM BEARINGS: Double Thrust.
  • OIL PUMP: 30mm Cast with Full Flow Cover.
  • DEEP SUMP: 1.5 Quart.
  • SUMP PLATE: Billet Aluminum with drain plug.
  • HEAD STUDS: Chromoly Studs/Nuts.
  • PISTONS & CYLINDERS: Performance 94mm with Clip Retainers.
  • PUSHROD TUBES: Sprung loaded type.
  • HEADS: Stage 2 CNC Ported Performance, 42x37mm Stainless Valves, 3/4" Spark Plug Holes.
  • PUSHRODS: Manton Chromoly.
  • ROCKERS: Forged 1.25 or 1.4 Ratio.(depending on cam chosen)
  • VALVE COVER: Bolt-on Aluminium.
  • GASKETS: Elring German kit.
  • TINWARE: Black or Chrome.
  • Doghouse Fan Shroud, Front, Rear, Pulley & Dual Port Cylinder Tins, Breast Plate.
  • CHARGING: 12 Volt Alternator 55 amp, Steel Strap, Welded Fan, Hub kit.
  • PULLEYS: Billet aluminium Pulleys (Steel Centre crank pulley) & billet Nuts.
  • IGNITION: 123 Ignition Distributor, Clamp, Coil, Silicone Spark Plug Leads.
  • OIL COOLING: Doghouse Oil Cooler, Oil Pressure Switch.
  • EXHAUST AND CLUTCH KITS ARE NOT INCLUDED IN THE PRICE.
  • Please email us stating make/model/year and we can give choices available.
  • UPGRADES AVAILABLE:
  • Black Laser Aluminum Crank Pulley.
  • Billet Fuel Pump Block.
  • Billet Dip Stick.
  • Billet Filler Neck.
  • Bluetooth distributor.
  • Billet distributor clamp.
  • Oil pressure sender.
  • Porsche cooling kit.
  • Breather Tower.
  • Forged Pistons recommended for large cam profiles, along with Total seal rings.
  • Or please ask if you have any specific requirements.
  • SHIPPING AVAILABLE WORLDWIDE (Collection welcome from our base in Nottinghamshire UK)
  • Images show previous builds, your build may vary depending on specification chosen.
  • Engines ship Via Air Freight.
  • EMAIL US FOR A QUOTE
Get a Quote WhatsApp Call
10% Sale
NEW 1600cc & 1641cc Single & Twin port Turnkey Engines, Single Carburetor 2024

Part no. AH-TK-005

NEW 1600cc & 1641cc Single & Twin port Turnkey Engines, Single Carburetor 2024

£6,499.00£5,849.10Exclusive of VAT

No exhaust or clutch included

FUELLING: 34Pict Carb, Rubber Boots, Clamps, End Castings, Chrome Air Cleaner, Ethanol resistant Fuel Hose.

  • COMPLETE ALL NEW PARTS TURN KEY ENGINE.
  • - Not Rebuilt & No Core Needed-
  • DYNAMICALLY BALANCED ROTATING ASSEMBLY IN HOUSE.
  • ENGINE CASE: Autolinea Aluminum case. Full Flowed, (Stronger than the original VW cases)
  • CRANKSHAFT: 69mm 4 dowel.
  • RODS: iBeam Chromoly.
  • CAMSHAFT: Engle or Scat with Bolt-on Gear.
  • LIFTERS: To match cam.
Full specification
  • FLYWHEEL: 200mm 4 dowel.
  • GLAND NUT: Chromoly with Washer.
  • MAIN BEARINGS: Standard Steel Center.
  • ROD BEARINGS: Standard.
  • CAM BEARINGS: Double Thrust.
  • OIL PUMP: 26mm Cast with Full Flow Cover.
  • SUMP PLATE: Billet with drain plug.
  • HEAD STUDS: Chromoly Studs/Nuts.
  • PISTONS & CYLINDERS: Performance 85.5mm
  • PUSHROD TUBES: Sprung loaded type.
  • HEADS: 35x32 valve Dual port.
  • PUSHRODS: SCAT Steel.
  • ROCKERS: Genuine German 1.1 Ratio Best quality.
  • VALVE COVER: Bolt-on Aluminium.
  • GASKETS: Elring German kit.
  • TINWARE: Black or Chrome.
  • Doghouse Fan Shroud, Front, Rear, Pulley & Dual Port Cylinder Tins, Breast Plate.
  • CHARGING: 12 Volt Alternator 55 amp, Steel Strap, Welded Fan, Hub kit.
  • PULLEYS: Steel Pulleys & Chrome Nuts.
  • IGNITION: 123 Ignition Distributor, Clamp, Coil, Silicone Spark Plug Leads.
  • OIL COOLING: Doghouse Oil Cooler, Oil Pressure Switch.
  • EXHAUST AND CLUTCH KITS ARE NOT INCLUDED IN THE PRICE.
  • Please email us stating make/model/year and we can give choices available.
  • UPGRADES AVAILABLE:
  • Black Laser Aluminum Crank Pulley.
  • Billet Fuel Pump Block.
  • Billet Dip Stick.
  • Billet Filler Neck.
  • Bluetooth distributor.
  • Billet distributor clamp.
  • Oil pressure sender.
  • Porsche cooling kit.
  • Breather Tower or Box.
  • Or please ask if you have any specific requirements.
  • SHIPPING AVAILABLE WORLDWIDE (Collection welcome from our base in Nottinghamshire UK)
  • Images show previous builds, your build may vary depending on specification chosen.
  • Engines ship Via Air Freight.
  • EMAIL US FOR A QUOTE
Get a Quote WhatsApp Call
10% Sale
NEW 1776cc Turnkey Engines, Twin Carburetor 2026

Part no. AH-TK-006

NEW 1776cc Turnkey Engines, Twin Carburetor 2026

£8,490.00£7,641.00Exclusive of VAT

No exhaust or clutch included

FUELLING: Weber 34ICT Dual Carb kit, or 40idf Copies . Manifolds, linkage kit, Chrome Air Cleaners, Ethanol resistant Fuel Hose.

No Clutch or Exhaust is included in the price, as we would need to discuss what system is required.

  • COMPLETE ALL NEW PARTS TURN KEY ENGINE
  • - Not Rebuilt & No Core Needed-
  • DYNAMICALLY BALANCED ROTATING ASSEMBLY IN HOUSE.
  • ENGINE CASE: Autolinea Aluminum case. Full Flowed, (Stronger than the original VW cases)
  • CRANKSHAFT: 69mm Forged Counterweight 8 dowel
  • RODS: 5.4"
  • CAMSHAFT: Engle or Scat with Bolt-on Gear.
  • LIFTERS: To match cam.
Full specification
  • FLYWHEEL: 200mm lightened 8 dowel.
  • GLAND NUT: Chromoly with Washer.
  • MAIN BEARINGS: Standard Steel Center.
  • ROD BEARINGS: Standard.
  • CAM BEARINGS: Double Thrust.
  • OIL PUMP: 26mm Cast with Full Flow Cover.
  • DEEP Sump: 1.5 qrt
  • SUMP PLATE: Billet with drain plug.
  • HEAD STUDS: Chromoly Studs/Nuts.
  • PISTONS & CYLINDERS: Performance 90.5mm
  • PUSHROD TUBES: Sprung loaded type.
  • HEADS: 35x32 valve Dual port.
  • PUSHRODS: HD Steel.
  • ROCKERS: 1.1 Ratio Best quality.
  • VALVE COVER: Bolt-on Aluminium.
  • GASKETS: Elring German kit.
  • TINWARE: Black or Chrome.
  • Doghouse Fan Shroud, Front, Rear, Pulley & Dual Port Cylinder Tins, Breast Plate.
  • CHARGING: 12 Volt Alternator 55 amp, Steel Strap, Welded Fan, Hub kit.
  • PULLEYS: Steel Pulleys & Chrome Nuts.
  • IGNITION: electronic Ignition Distributor, Clamp, Coil, Silicone Spark Plug Leads.
  • OIL COOLING: Doghouse Oil Cooler, Oil Pressure Switch.
  • EXHAUST AND CLUTCH KITS ARE NOT INCLUDED IN THE PRICE.
  • Please email us stating make/model/year and we can give choices available.
  • UPGRADES AVAILABLE:
  • Black Laser Aluminum Crank Pulley.
  • Billet Fuel Pump Block.
  • Billet Dip Stick.
  • Billet Filler Neck.
  • Bluetooth distributor.
  • Billet distributor clamp.
  • Oil pressure sender.
  • Porsche cooling kit.
  • Breather Tower or Box.
  • Or please ask if you have any specific requirements.
  • SHIPPING AVAILABLE WORLDWIDE (Collection welcome from our base in Nottinghamshire UK)
  • Images show previous builds, your build may vary depending on specification chosen.
  • All engine build prices are plus VAT.
  • Engines ship Via Air Freight.
  • EMAIL US FOR A QUOTE
Get a Quote WhatsApp Call
10% Sale
New 1835cc & 1914cc Turnkey Engines, Dual Carburetors 2026

Part no. AH-TK-007

New 1835cc & 1914cc Turnkey Engines, Dual Carburetors 2026

£8,280.00£7,452.00Exclusive of VAT

No exhaust or clutch included

FUELLING: Dual 40IDF Carburetor Kit, Linkage kit, Manifolds, Chrome Air Cleaners, Ethanol resistant Fuel Hose.

  • COMPLETE ALL NEW PARTS TURN KEY ENGINE.
  • - Not Rebuilt & No Core Needed-
  • DYNAMICALLY BALANCED ROTATING ASSEMBLY IN HOUSE.
  • ENGINE CASE: Autolinea Aluminum case. Full Flowed, (Stronger than the original VW cases)
  • CRANKSHAFT: 69mm Chromoly Counter. Weighted, 8 Dowel.
  • RODS: iBeam Chromoly.
  • CAMSHAFT: Engle or Scat with Bolt-on Gear.
  • LIFTERS: To match cam.
Full specification
  • FLYWHEEL: 8 Dowel Forged Chromoly Lightened.
  • GLAND NUT: Chromoly with Washer.
  • MAIN BEARINGS: Standard Steel Center.
  • ROD BEARINGS: Standard.
  • CAM BEARINGS: Double Thrust.
  • OIL PUMP: 26mm Cast with Full Flow Cover.
  • DEEP SUMP: 1.5 Quart.
  • SUMP PLATE: Billet Aluminum with drain plug.
  • HEAD STUDS: Chromoly Studs/Nuts.
  • PISTONS & CYLINDERS: Performance 90.5mm or 94mm with Clip Retainers.
  • PUSHROD TUBES: Stainless steel.
  • HEADS: 40x36.5 Stainless Valves, 3/4" Spark Plug Holes.
  • PUSHRODS: SCAT Steel.
  • ROCKERS: Genuine German 1.1 Ratio Best quality.
  • VALVE COVER: Bolt-on Aluminium.
  • GASKETS: Elring German kit.
  • TINWARE: Black or Chrome.
  • Doghouse Fan Shroud, Front, Rear, Pulley & Dual Port Cylinder Tins, Breast Plate.
  • CHARGING: 12 Volt Alternator 55 amp, Steel Strap, Welded Fan, Hub kit.
  • PULLEYS: Steel Pulleys & Chrome Nuts.
  • IGNITION: Electronic iIgnition Distributor, Clamp, Coil, Silicone Spark Plug Leads.
  • OIL COOLING: Doghouse Oil Cooler, Oil Pressure Switch.
  • EXHAUST AND CLUTCH KITS ARE NOT INCLUDED IN THE PRICE.
  • Please email us stating make/model/year and we can give choices available.
  • UPGRADES AVAILABLE:
  • Black Laser Aluminum Crank Pulley.
  • Billet Fuel Pump Block.
  • Billet Dip Stick.
  • Billet Filler Neck.
  • Bluetooth distributor.
  • Billet distributor clamp.
  • Oil pressure sender.
  • Porsche cooling kit.
  • Breather Tower.
  • Or please ask if you have any specific requirements.
  • SHIPPING AVAILABLE WORLDWIDE (Collection welcome from our base in Nottinghamshire UK)
  • Images show previous builds, your build may vary depending on specification chosen.
  • Engines ship Via Air Freight.
  • EMAIL US FOR A QUOTE
Get a Quote WhatsApp Call
10% Sale
New 2110cc Turnkey Engines Dual 40iDF Weber Carburetors 2026

Part no. AH-TK-008

New 2110cc Turnkey Engines Dual 40iDF Weber Carburetors 2026

£9,499.00£8,549.10Exclusive of VAT

No exhaust or clutch included

ENGINE CASE: Autolinea Aluminum Super Case, Full Flowed, Shuffle Pinned, Clearance for bigger stroke cranks. (Stronger than the original VW cases)

FUELLING: Dual Weber Carburetor Kit, Linkage kit, Manifolds, Chrome Air Cleaners, Ethanol resistant Fuel Hose.

  • COMPLETE ALL NEW PARTS TURN KEY ENGINE.
  • - Not Rebuilt & No Core Needed-
  • DYNAMICALLY BALANCED ROTATING ASSEMBLY IN HOUSE.
  • CRANKSHAFT: 82mm 4340 Chromoly Counter. Weighted, 8 Dowel.
  • RODS: H-Beam or iBeam, ARP Bolts.
  • CAMSHAFT: Engle or Scat with Bolt-on Gear.
  • LIFTERS: To match cam.
  • FLYWHEEL: 8 Dowel Forged Chromoly Lightened.
Full specification

No Clutch or Exhaust is included in the price, as we would need to discuss what system is required.

  • GLAND NUT: Chromoly with Washer.
  • MAIN BEARINGS: Standard Steel Center.
  • ROD BEARINGS: Standard.
  • CAM BEARINGS: Double Thrust.
  • OIL PUMP: 26mm or (30mm on request) with Steel Full Flow Cover.
  • DEEP SUMP: 1.5 Quart.
  • SUMP PLATE: Billet Aluminum with drain plug.
  • HEAD STUDS: Chromoly Studs/Nuts.
  • PISTONS & CYLINDERS: Performance 90.5mm with Clip Retainers.
  • PUSHROD TUBES: Sprung loaded type.
  • HEADS: 40x36.5 Stainless Valves, 3/4" Spark Plug Holes.
  • PUSHRODS: Manton Chromoly.
  • ROCKERS: Forged 1.25 Ratio.
  • VALVE COVER: Bolt-on Aluminium.
  • GASKETS: Elring German kit.
  • TINWARE: Black or Chrome.
  • Doghouse Fan Shroud, Front, Rear, Pulley & Dual Port Cylinder Tins, Breast Plate.
  • CHARGING: 12 Volt Alternator 55 amp, Steel Strap, Welded Fan, Hub kit.
  • PULLEYS: Steel Pulleys & Chrome Nuts.
  • IGNITION: Electronic Ignition Distributor, Clamp, Coil, Silicone Spark Plug Leads.
  • OIL COOLING: Doghouse Oil Cooler, Oil Pressure Switch.
  • EXHAUST AND CLUTCH KITS ARE NOT INCLUDED IN THE PRICE.
  • Please email us stating make/model/year and we can give choices available.
  • UPGRADES AVAILABLE (extra cost)
  • Serpentine Pulley kit.
  • Billet Aluminum Crank Pulley.
  • Billet Fuel Pump Block.
  • Billet Dip Stick.
  • Billet Filler Neck.
  • Bluetooth distributor.
  • Billet distributor clamp.
  • Oil pressure sender.
  • Porsche cooling kit.
  • Breather Tower.
  • Or please ask if you have any specific requirements.
  • SHIPPING AVAILABLE WORLDWIDE (Collection welcome from our base in Nottinghamshire UK)
  • Images show previous builds, your build may vary depending on specification chosen.
  • Engines ship Via Air Freight.
  • EMAIL US FOR A QUOTE
  • All engine build prices are plus VAT.
Get a Quote WhatsApp Call
10% Sale
2110cc Porsche Cooling Engine. All new parts GET IN TOUCH FOR PRICES

Part no. AH-TK-009

2110cc Porsche Cooling Engine. All new parts GET IN TOUCH FOR PRICES

£12,800.00£11,520.00Exclusive of VAT

No exhaust or clutch included

This 2110CC Type 1 engine is the perfect addition to your Beetle, Splitscreen, or Baywindow vehicle (with altered tinware). With Porsche Cooling and quality parts throughout, this engine is built to last and provide top-notch performance. All new parts mean a turn key engine, so no exchange unit is needed. Plus, it can be built into various sizes to suit your intended purpose. The included Forged Crankshaft, Performance Cam kit, Chromoley 200mm Flywheel, HD Gland nut, and forged Ro ensure that this engine will exceed your expectations in both power and durability. Contact us for pricing and get your custom-built air-cooled engine today!

All aspects can be altered to suit vehicle & intended use so please get in touch if you want to alter the specification.

  • Forged Crankshaft
  • Performance Cam kit
  • Chromoley 200mm Flywheel
  • HD Gland nut/washer
  • Forged Rocker set
  • Deep sump
  • Chromoly con rods
  • Bolt on rocker covers
Full specification

No Clutch or Exhaust is included in the price, as we would need to discuss what system is required.

  • Distributor clamp
  • Filter & linkage kit
  • Electronic Ignition Distributor
  • Porsche cooling kit
  • Billet pulley kit
  • 40idf Weber carb kit
  • Silicone Ht lead set
  • Extra parts may be required:
  • Exhaust (not included in price)
  • Clutch kit
  • Breather box
  • Built to order item, with a typical waiting time of 3 months.
  • Images show a past build.
  • All engine build prices are plus VAT.
Get a Quote WhatsApp Call
1776cc Turn key (1835cc or 1915cc also available)

Part no. AH-TK-010

1776cc Turn key (1835cc or 1915cc also available)

POAGet in touch for a price

No exhaust or clutch included

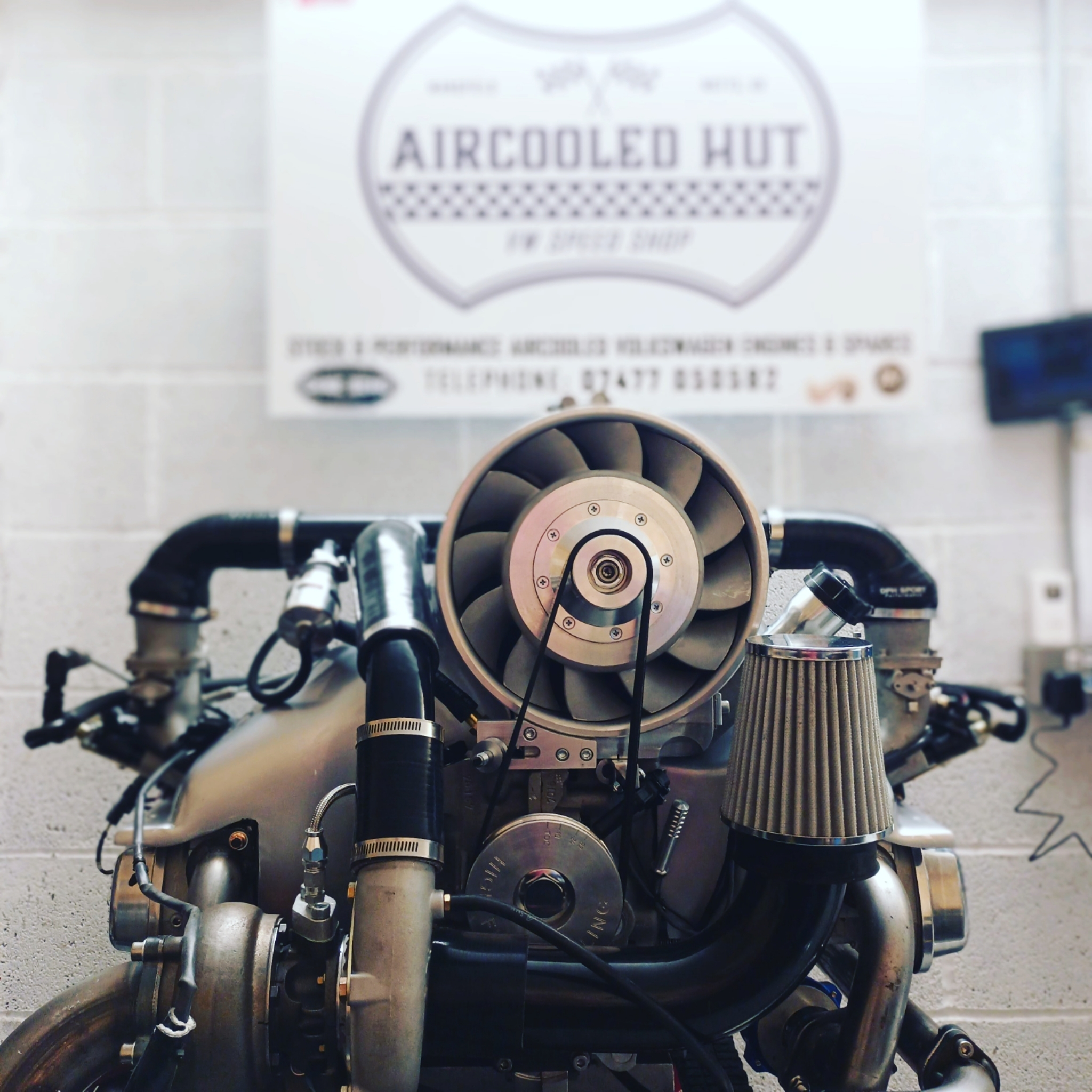

  • 1776cc Turn key Engine with Fuel injection Turbo kit.
  • Fitted with Type 1 Tinware to fit a Beetle or Splitscreen Bus, in satin Black.
  • Stainless Steel Exhaust system.
  • Fitted with a hideaway Turbo kit.
  • **Images from a past build (used old tinware)
Get a Quote WhatsApp Call
10% Sale
1600cc All New Parts Turn Key Engine - Twin port or Single port

Part no. AH-TK-011

1600cc All New Parts Turn Key Engine - Twin port or Single port

£6,889.00£6,200.10Exclusive of VAT

No exhaust or clutch included

  • 1600cc ALL NEW PARTS TURN KEY ENGINE. (1 YEAR Warranty/10,000 miles whichever is sooner)
  • BUILT TO ORDER ITEM.
  • This is a complete engine, with a balanced Crank assembly.
  • Single carb kit (Upgrade to twin carbs available)
  • Stock 69mm Crankshaft
  • 36mm gland nut
  • Stock type iBeam Rods
  • Flywheel 200mm 12v (Please state is 180mm required)
Full specification
  • Piston & Cylinder kit
  • High Quality Rod Bearings
  • High Quality Cam Bearing Set
  • High Quality Complete Gasket setRed Silicone Main Seal
  • Heavy Duty Steel pushrod set
  • Stock type 1.1 rocker set
  • Stock camshaft and lifters (Mild performance cam kit available on request)
  • Aluminium Helical cam gear
  • New autolinea Crankcase
  • Cylinder Heads : Dual Port Cylinder Heads (Single Port on request)
  • New tinware (without heat. Select WITH HEAT Option as required)
  • New alternator kit
  • NEW Ignition Coil
  • Distributor
  • HT Leads
  • Spark plugs
  • Twin Port Cooling fan and hub fitting kit
  • Steel crank pulley & Stock bolt w/washer
  • Steel Alternator pulley and Bolt
  • (Exhaust & Clutch kit charged extra if required)
Get a Quote WhatsApp Call
10% Sale
1915cc All New Parts Turn Key Engine. 2024 prices

Part no. AH-TK-012

1915cc All New Parts Turn Key Engine. 2024 prices

£7,999.00£7,199.10Exclusive of VAT

No exhaust or clutch included

  • ALL NEW PARTS TURN KEY ENGINE. (1 year warranty)
  • Ideal build for a bus with extra power over stock for modern traffic.
  • Parts can be changed to suit your requirements/vehicle.
  • Weber 34ICT twin carb kit
  • Forged Counter weighted Crankshaft
  • Chromoly iBeam Rods
  • Chromoly Flywheel (Light weight)
  • Piston & Cylinder kit
Full specification
  • Chromoly Race Gland Nut with H.D. Washer
  • High Quality Rod Bearings
  • High Quality Cam Bearing Set
  • High Quality Complete Gasket setRed Silicone Main Seal
  • Chromoly pushrods
  • Solid shaft rockers
  • Engle W100, W110 cam & lifters (or SCAT Equivalent)
  • New autolinear engine case/Full flowed (Oil cooler kit available as an upgrade)
  • New tinware (with or without heat)
  • New alternator kit
  • Distributor
  • Bosch or Beru coil
  • 8mm silicone HT leads
  • Dual Port Cylinder Heads
  • Crank assembly dynamically balanced.
  • (No exchange required)
  • Get in touch for a personal quote to your specification.
  • (Exhaust & Clutch kit charged extra if required)
Get a Quote WhatsApp Call
10% Sale
TYPE 4 Porsche Cooling Turn key engine.. 2024

Part no. AH-TK-013

TYPE 4 Porsche Cooling Turn key engine.. 2024

£9,898.00£8,908.20Exclusive of VAT

No exhaust or clutch included

  • TYPE 4 PERFORMANCE ENGINE WITH PORSCHE COOLING KIT.
  • DYNAMICALLY BALANCED ROTATING ASSEMBLY IN HOUSE.
  • Engle or SCAT Camshaft of choice.
  • Matching cam followers.
  • FUELLING: Twin weber 40idf carb kit
  • (No exhaust)
  • Breather box
  • Deep Sump or none
Full specification
  • Rocker covers: Cast aluminium bolt up
  • Crankshaft: upto 82mm Crankshaft.
  • Connecting Rods: H-Beam Connecting rods, ARP Bolts.
  • Pushrods: Manton cut to length
  • Racing Gland nut
  • Cylinder heads: AMC
  • Rockers Refurbished German
  • 200mm Flywheel Forged 200mm.
  • (Image shows type 4 engine with Porsche Cooling)
  • Stock or Porsche cooling system available.
  • 1 year warranty.
  • SHIPPING AVAILABLE WORLDWIDE (Collection welcome from our base in Nottinghamshire UK)
  • Images show previous builds, your build may vary depending on specification chosen.
  • Engines ship Via Air Freight.
  • EMAIL US FOR A QUOTE
  • (Exhaust & Clutch kit charged extra depending on vehicle & style)
Get a Quote WhatsApp Call
10% Sale
2276cc Street Beast 44idf NEW 2026

Part no. AH-TK-014

2276cc Street Beast 44idf NEW 2026

£9,989.00£8,990.10Exclusive of VAT

No exhaust or clutch included

Case is fully prepared internally for correct bearing alignment, de-burred and thoroughly cleaned using high pressure cleaning.

The rotating assembly consists of a Forged chromoley crankshaft (bearing clearances set) which is dynamically balanced with the flywheel for smooth operation, less bearing wear and more hp!

  • 2276cc STREET BEAST
  • 44IDF Weber Carb kit.
  • (Price is a guide based on no extra)
  • Please ask about our Ultimate/Race Version
  • Autolinea super race case, pre-clearanced and shuffle pinned.
  • Full flowed for the use of a remote oil filter/cooler.
  • A heavy duty Oil Pump along with top quality Oil relief full flow cover.
  • 94mm Twin port, Performance cylinder heads,
Full specification

Conrods used will be forged chromoley H-beam rods, with the very best ARP bolts. (rods are balanced end to end)

Performance Cam kit fitted with straight cut gears matched to matching cam followers. (Double thrust cam bearings with correct side play set)

94mm Piston kit will be Forged items for added strength with all ring gaps set for fast road use.

Ported for high flow and flycut to obtain the correct compression ratio for the chosen cam.

1.25:1 Forged performance ratio rockers to match the camshaft with lash caps to protect the valve stem tips.

Stainless steel or Bolt on Aluminium rocker covers fitted with breather vents to link to your chosen breather system.

200mm 8 doweled Forged Flywheel secured with a performance 38mm Gland nut (350 - 400 ftlbs)

Full tinware set prepared for correct fitment, and either Powder coated in chosen coating or available in 2k Paint to chosen colour.

Oil Filter on a remote filter stand and length of oil line with High Temp flame proof sleeve to protect from exhaust system.

(Available in Polished aluminium, Black, Red or Blue)Choice of breather tower or breather box Topped off with Weber 48IDF carbs!Full warranty.*

  • Fuel pump blank with breather vent (replaces the stock pump)
  • Rotary Electronic fuel pump fitted giving correct pressure for Weber carbs.
  • Deep Sump extension for extra oil capacity (Avoids pickup pipe sucking in oil froth)
  • Billet drain plate or 8 bolt plate.
  • 55amp Alternator kit
  • Fuel lines, Genuine Codan R9 for long life even with todays aggressive fuels.
  • Filters used are Wix Pro or K&N filter.
  • OPTIONS:
  • Serpentine Pulley system.
  • Gearbox upgrades
  • (Exhaust & Clutch kit charged extra depending on vehicle & style)
  • (Breather box is also required for all twin port engines)
  • All engine builds are Plus VAT.
Get a Quote WhatsApp Call
10% Sale
1915cc LONG BLOCK - With TURN KEY option.ALL NEW PARTS Stock or Performance

Part no. AH-TK-015

1915cc LONG BLOCK - With TURN KEY option.ALL NEW PARTS Stock or Performance

£5,399.00£4,859.10Exclusive of VAT

No exhaust or clutch included

AUTOLINEA CRANKCASE – Mag case (Super Race case for Cranks bigger than 82mm or available as upgrade)

*** CAMSHAFT KIT - Engle or Scat with Aluminium helical gear (Steel Straight Cut Upgrade)

  • 1915cc LONG BLOCK - ALL NEW PARTS BUILD 2021 (With option to make turn key engine)
  • ALL BRAND-NEW PARTS
  • Not a refurbished part in sight & no exchange required!
  • KEY COMPONENTS
  • Items with *** have options available
  • STOCK BUILD
  • Full flowed case/pump with remote twist on filter (except for 1600/1641cc)
  • HEAD STUD KIT - 8mm chromoly with heavy duty nuts/washers
Full specification

Stock or Mild Performance Camshaft Choice: (Give your vehicle that extra boost. Effectively moving the rev range higher to gain more HP)

Single Carb and manifold. New tinware, Alternator Kit with Stand, Fan kit, Mechanical Fuel Pump, Codan R9 Fuel Lines, New Distributor/Leads/Coil, Plugs

Twin 34 Carbs and manifold. New tinware, Alternator Kit with Stand, Fan kit, Mechanical Fuel Pump, Codan R9 Fuel Lines, New Distributor/Leads/Coil, Plugs

All engines are priced without an exhaust or heat exchanges. This is due to the varying styles available for various vehicles.

  • FORGED CRANKSHAFT – Counterweighted 8 Dowels Dynamically Balanced with Flywheel
  • FLYWHEEL – 200mm 12 volt, Lightened 8 Dowel cast
  • GLAND NUT - 38mm Heavy duty Chromoly/Washer (36mm on 1600/1641cc)
  • *** CON RODS - Chromoly I-beam 5.4” VW Journal (H-beam upgrade)
  • CAM FOLLOWERS – Matched to camshaft
  • MAIN BEARING SET – Standard size
  • ROD BEARING SET - Standard size
  • CAM BEARING SET - Standard size Double Thrust (Single on 1600/1641cc)
  • ***OIL PUMP - 26mm (30mm Pump with Oil Cooler Kits fitted)
  • OIL PUMP COVER – Full flow cover (Stock Steel type available on 1600/1641cc)
  • DEEP SUMP – 1.5qrt
  • ***OIL DRAIN PLATE – Stock Steel type (Billet Aluminium upgrade)
  • ***PISTONS & BARREL KIT - Cast (Forged upgrade)
  • ***PUSH-ROD TUBES – Stock Steel or Racing wide end (Aluminium sprung type upgrade)
  • ***CYLINDER HEADS - Stock or Big valves
  • PUSH-ROD SET - Chromoly Steel
  • ROCKER SET - Bolt up shaft type (Forged 1.25 Ratio upgrade)
  • ROCKER COVERS - Aluminium Bolt On or stainless-steel clip on
  • GASKETS - Best quality Elring kit
  • OIL RELIEF KIT – Stock type
  • Options List:
  • (Everything below can be selected on the options panel)
  • NEW Cylinder Heads:
  • Twin Port Heads: (Autolinea, Classic line, Empi)
  • Stock Camshaft
  • Engle W-100 (or Scat c25)
  • Engle W-110 (or Scat c35)
  • Pushrod Tubes:
  • Steel
  • Stainless Steel
  • Rocker Covers:
  • Stock
  • Bolt up Aluminium
  • Rockers: (required for cams W-110 above)
  • Bolt up Rocker shaft
  • Crank Case:
  • Used for Beetle
  • Used for Early bay and later
  • NEW MAG AS41
  • Flywheel:
  • 180mm USED ONLY
  • 200mm 4 dowel Full Weight
  • 200mm 8 dowel Lightweight
  • Full Flow Options:
  • None
  • Full flow case/Cover (Without engine bars)
  • Full Flow In/Out Cover (Vehicles with engine bars)
  • Looking for a TURN KEY based on a refurbished engine, Ready to bolt into your vehicle!
  • Turn Key options
  • SINGLE CARB:
  • Crankshaft & Alternator Pulley (Steel)
  • TWIN CARB:
Get a Quote WhatsApp Call
10% Sale
1776cc - 2276cc EFI Turbo Turn key engine GET IN TOUCH FOR PRICES

Part no. AH-TK-016

1776cc - 2276cc EFI Turbo Turn key engine GET IN TOUCH FOR PRICES

£17,999.00£16,199.10Exclusive of VAT

No exhaust or clutch included

This will make good power on low boost and is the ideal way for that extra power without having a highly strung engine that will wear quickly. Power can be in the range of 200 to 350hp depending on final specification.

(Performance Engines sometimes require altering of vehicle engine bay, which is the responsibility of the fitter)

  • Fuel injected Turbo engines, built to turn key up to
  • 2276cc.
  • Using fully forged internal parts, dynamically balanced
  • Prices vary depending on final specification.
  • Listed price is for stock fan shroud.
  • Porsche Cooling available for extra £2,000 on listed price.
  • Tig welded inlet manifold available as an extra.
  • Fan shrouds are painted Black as standard with choice of colour as an extra.
Full specification

No Clutch or Exhaust is included in the price, as we would need to discuss what system is required.

  • Camshaft choice and Flywheel to suite your vehicle.
  • Maxx ECU & Tuck away Turbo Kit.
  • Benefits of EFI are:
  • Increase Power
  • Low-End Torque
  • Throttle Response
  • Cleaner Emissions
  • Increase MPG
  • Easy Starting
  • Typical Long Block:
  • Nitrided chromoly forged crankshaft.
  • NEW forged H-Beam rods (Chevy or VW journal)
  • NEW Stroker AS41 dual by-pass engine case
  • NEW CNC Port polished dual-port heads
  • NEW 3/8 cut to length chromoly push rods
  • NEW Crankshaft Gear Assembly Kit
  • NEW 40-piece Engine Lock Nut Kit
  • NEW Universal Engine Case Hardware Kit
  • NEW SCAT adjustable O-Ring aluminium pushrod tubes
  • NEW 4140 chromoly 8mm dual-port cylinder/head stud kit
  • (Exhaust & Clutch kit charged extra depending on vehicle & style)
  • These are built to order, with images past builds.
  • All engine build prices are plus VAT.
Get a Quote WhatsApp Call
TYPE 4 Turn Key engine Porsche Cooling

Part no. AH-TK-017

TYPE 4 Turn Key engine Porsche Cooling

POAGet in touch for a price

No exhaust or clutch included

  • Turn key engine with Porsche Cooling.
  • Various engine capacities and specifications. Get in touch for prices.
  • Crank assembly dynamically balanced.
  • Full warranty.*
  • *Images of past builds, as all builds differ.
  • (Type 4 build with Porsche cooling and a type 1 build with EFI)
Get a Quote WhatsApp Call
10% Sale
2332cc Turn Key performance engine 190hp 2026

Part no. AH-TK-018

2332cc Turn Key performance engine 190hp 2026

£11,300.00£10,170.00Exclusive of VAT

No exhaust or clutch included

  • 2332cc ULTIMATE STREET/RACE ENGINE
  • Turn key engine built using quality forged parts.
  • This is a performance engine build typically making 190hp at the wheels.
  • Full specification can be built to suit your vehicle and usage.
  • Price depends upon final specification chosen.
  • Comes with the following performance parts: Performance camshaft
  • 48 Twin weber carbs
  • Choice of breather tower or breather box.
Full specification
  • Deep Sump
  • Autolinea Super Case, shuffle pinned and full flowed
  • Bolt on rocker covers
  • Forged 84mm crank
  • H Beam connecting rods
  • Heavy duty Chromoley pushrods
  • Racing Gland nut
  • Performance forged 94mm Cylinder heads
  • Forged ratio rockers
  • Chromoley 200mm Flywheel
  • Top quality Distributor
  • Silicone HT Leads/coil
  • Tinware powder coated to customer choice
  • Full spec list available.
  • Crank assembly dynamically balanced.
  • 1 year warranty.
  • (Exhaust & Clutch kit charged extra depending on vehicle & style)
Get a Quote WhatsApp Call
10% Sale
2276cc Ultimate Street/Race Turn Key engine. 2026

Part no. AH-TK-019

2276cc Ultimate Street/Race Turn Key engine. 2026

£11,999.00£10,799.10Exclusive of VAT

No exhaust or clutch included

No Clutch or Exhaust is included in the price, as we would need to discuss what system is required.

  • 2276cc ULTIMATE STREET/ RACE
  • Turn key engine.
  • Comes with the following performance parts:
  • Twin Weber 48ida Carb kit.
  • Performance Cam kit/Matching lifters.
  • Highlights:
  • Bubble top Race case.
  • SCAT CNC D port 94mm cylinder heads
Full specification
  • Deep Sump
  • Billet drain plate
  • Case full flowed
  • Stainless rocker covers with vents.
  • Forged 82mm racing crankshaft - 8 dowel
  • H Beam connecting rods
  • Heavy duty Chromoley pushrods
  • Racing Gland nut
  • 1.25:1 Pro comp ratio rockers
  • Chromoley 200mm Flywheel
  • Crank dynamically balanced.
  • Other parts required (charged extra)
  • EXHAUST NOT INCLUDED.
  • RECOMMENDED IS A Sidewinder or CSP Python exhaust system
  • Choice of breather tower or breather box.
  • Clutch kit stage 1 with Daikin disc
  • Uprated gearbox
  • All engine build prices are plus VAT.
Get a Quote WhatsApp Call
1956cc All New Parts Turn Key Engine GET IN TOUCH FOR PRICES

Part no. AH-TK-020

1956cc All New Parts Turn Key Engine GET IN TOUCH FOR PRICES

POAGet in touch for a price

No exhaust or clutch included

  • Specification can be changed on request.
  • 34ICT Twin carbs
  • Black Tinware (Powder coat is extra)
  • Engle 110 cam or Scat C25
  • All builds come fitted with Alternator and ready to fit.
  • NO CLUTCH FITTED (Ask for price if you require this)
  • Engle W100 or W110 cam / Scat C25 or Scat C35
  • Matching Cam followers
Full specification
  • Forged Crankshaft 69mm
  • 200mm 8 dowel Flywheel 12v
  • Hypereutectic Piston & Liner Kit
  • Dual Port Performance Cylinder Heads.
  • (Exhaust & Clutch kit charged extra depending on vehicle & style)
Get a Quote WhatsApp Call

Want something different?

Porsche cooling, EFI, supercharged or turbo — tell us the car and how you use it and we will spec the build to suit.

Discuss your buildType 1 long blocksPrice list
Call8am-4pm weekdaysWhatsAppGet a Quote
