Long Blocks

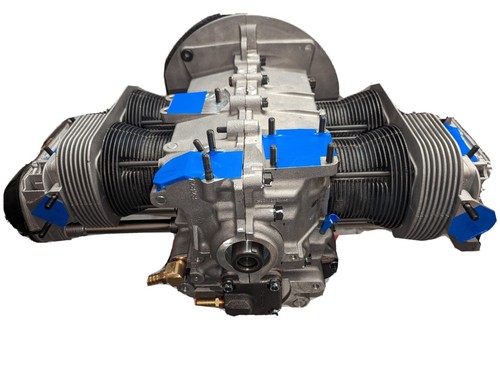

Type 1 long blocks — your foundation.

A complete long block ready for you to add your own ancillaries — or let us finish it as a turn-key engine. Refurbished exchange builds and all-new-parts builds available.

What's in a Type 1 long block

• New or fully reconditioned crankcase, line-bored and balanced
• Crankshaft, flywheel, pressure plate and pulley dynamically balanced
• Connecting rods reconditioned with new shells
• New piston & cylinder kit (size to your spec)
• Fully refurbished or new cylinder heads
• New cam, lifters, pushrods and timing gear
• Assembled, sealed, and pressure-tested

Every build, properly tested

Every build is hand built by a professional engine builder. We leak down test, oil pressure & cylinder compression is checked. Hot run for 30 minutes to break in the engine, and check for oil leaks before dispatch. We use quality components throughout for unmatched reliability, with no reused parts compromising the engine's integrity.

All of our engines are blueprinted, with bearing clearances set, piston & ring measurements, end play, little ends etc. checked and set. Compression ratio raised to match the chosen camshaft & a forged dynamically balanced rotating assembly to ensure long life and maximum power.

Great aftersales service and a minimum of 12 months unlimited miles warranty you can rely on should you have any problems down the road. There is no guess work here, just built right. Because we hate warranty returns just as much as you do!

All our engines are suitable for unleaded fuel, and supplied with remaining engine gasket kit, and flywheel fitted. All engine build prices are plus VAT.

Type 1 long blocks

10% Sale

Part no. AH-LB1-001

1600cc Twin Port. Dynamically balanced. Refurbished Long Block/Turn Key option

£2,100.00£1,890.00Exclusive of VAT

No exhaust or clutch included

(£450 added to price is refunded once your return engine is received in an acceptable condition. ** see bottom of page)

BALANCED CRANK: Genuine VW reground as required & Dynamically Balanced. (who else builds refurb engines like this?)

Refurbished Twin Port (or single port) Long Block
Refurbished Cylinder Heads
CAMSHAFT AND LIFTERS **
(Crank Pulley not included on long block builds)
Looking for a TURN KEY based on a refurbished engine, Ready to bolt into your vehicle!
Turn Key options
SINGLE CARB:
TWIN CARB:

Full specification

NEW Spark plugs.NEW Steel Pushrod tubes. **NEW Pistons & Ring pack.NEW Barrels. NEW or refurbished Rocker covers.** NEW MAIN BEARINGS. NEW BIG ENDS. NEW CAM BEARINGS. NEW FLYWHEEL 200mm 12v.NEW Elring silicone Flywheel oil seal. NEW Elring Gasket set. Rocker Set Refurbished **CASE: Align bored as required. with or without bus mounts (Chemical cleaned inside/out and then painted Silver) **CONRODS: VW forged conrods checked and new bushes as required. NEW FLYWHEEL: Supplied with a 4 dowel 200mm 12v Stock weight flywheel (Please say if you need to keep your 180mm) ** End float set to correct specification. Supplied with the remaining gasket set for fitting your ancillaries.

Single Carb and manifold. New tinware, Alternator Kit with Stand, Fan kit, Mechanical Fuel Pump, Codan R9 Fuel Lines, New Distributor/Leads/Coil, Plugs, Empi exhaust and j tubes (Steel) Crankshaft & Alternator Pulley (Steel)

Twin 34 Carbs and manifold. New tinware, Alternator Kit with Stand, Fan kit, Mechanical Fuel Pump, Codan R9 Fuel Lines, New Distributor/Leads/Coil, Plugs, Empi exhaust and j tubes (Steel) Crankshaft & Alternator Pulley (Steel)

**Return engine should not be seized and the core components re-usable after moderate machine work. (Core parts are crankcase, crank, rods. If these are damaged an agreement can be made on the cost of sourcing replacement)

Build up refurbished Long Block using customer supplied parts (+ cost of parts required) 450 plus

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-002

1776cc Mild Performance - Long Block refurbished.

£3,595.00£3,235.50Exclusive of VAT

No exhaust or clutch included

This 1776cc build has the extra capacity for those dreaded hills and keeping up with traffic,

This gives smoother running, more hp, longer bearing life! How many engine builders go this far on refurbished engines.

PLUS UPGRADE CAM OPTION (mild performance camshaft to give your vehicle that extra boost.)
Great in Beetle, Karmann Ghia, Buggies, some Busses.
Fitted with a stock camshaft which is good for torque.
UPGRADE OPTIONS
2 choices of Camshaft.(Ask for prices)
Engle W-100 (or Scat c25) IDEAL FOR BUSES
Engle W-110 (or Scat c35) BEST FOR BEETLE, GHIA..
Long Block 1776cc (on exchange basis or surcharge payable)

Full specification

CASE: Genuine VW, with or without bus mounts.Align bored as required.Chemical cleaned inside/out and then painted Silver.

FLYWHEEL: Supplied with a 200mm 12v (Please say if you need to keep your 180mm)End float set to correct specification.

CYLINDER HEADS: Refurbished heads or New. Crack tested, vapour blasted & Worn Valves/guides replaced. Seats ground, rebuilt and pressure tested for good sealing valves.

No Clutch or Exhaust is included in the price, as we would need to discuss what system is required.

Turn key option available and includes New tinware, New Distributor/Lead/Coil, NEW Plugs, NEW exhaust and j tubes (Steel) Carb and manifold. Ready to bolt into your vehicle! Turn key varies depending on specification chosen. Please get in touch to discuss options and cost of chosen turn key option

DYNAMICALLY BALANCED CRANKSHAFT, FLYWHEEL, PRESSURE PLATE, PULLEY.
Every engine we build now gets this treatment.
Fully rebuilt and supplied as a long block engine for you to fit your own ancillaries.
Hot bench tested for our peace of mind & yours!
Spark plugs.
NEW Pushrod tubes.
NEW Pistons & Ring pack.
NEW Barrels.
NEW or refurbished Rocker covers.
NEW MAIN BEARINGS.
NEW BIG ENDS.
NEW CAM BEARINGS.
NEW or Refurbished FLYWHEEL 200mm 12v.
NEW Elring silicone Flywheel oil seal.
NEW Elring Gasket set.
Refurbished Rocker set.
CRANK: Genuine VW reground as required.
CAMSHAFT AND LIFTERS: STOCK (UPGRADE TO ENGLE OR SCAT.)
CONRODS: VW forged conrods checked and new bushes as required.
Supplied with the remaining gasket set for fitting your ancillaries.
All engine build prices are plus VAT.
Available as Twin Port.**

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-003

1300cc - 1600cc Aluminium Crankcase VW Type 1 Beetle 60-79, T2 Bay 68-79, T2

From £1,199.00From £1,079.10Exclusive of VAT

No exhaust or clutch included

Upgrade your engine with this direct replacement aluminium crankcase, designed specifically for 1300-1600cc or for larger modified engines with 3-rivet/bolt cams.

Offering enhanced rigidity compared to traditional magnesium cases, this crankcase serves as an excellent foundation for building higher-powered engines. Its robust construction ensures long-lasting durability and reliability, making it ideal for both performance enthusiasts and daily drivers.

Superior rigidity over standard magnesium cases
Designed for engines with 3-rivet/bolt cams
Dual-relief oil pressure galleries for optimal performance
8mm Case Savers included for 8mm head studs
Baywindow rear mounting points for secure fitting
Compatible with T1/T2 dipstick tube and Type 3 oil filler
Weight:
10.3500 kg

Full specification

The crankcase features dual-relief oil pressure galleries for superior oil distribution and 8mm case savers for added strength around the head studs. It also includes baywindow rear mounting points for a secure fit, and is compatible with T1/T2 dipstick tubes and Type 3 oil filler holes, ensuring seamless integration into your engine setup. This aluminium crankcase is engineered to support your high-performance goals and enhance your vehicle’s overall performance.

We also offer the same case already machined for 90.5/92mm and 94mm barrels and pistons with 10mm head stud inserts

For Vehicles

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-004

1200cc/1500/ 1600cc Single Port Refurbished Long Block.Stock

From £2,099.00From £1,889.10Exclusive of VAT

No exhaust or clutch included

Refurbished Single Port Long Block(£450 added to price at basket refunded on receipt of suitable core engine. See **Return engine section at bottom)

BALANCEDCRANK: Genuine VW reground as required & Dynamically Balanced. (who else builds refurb engines like this?)

Lead times shown on home page
Items with ** have upgrade options to select.(More info on these below)
Cylinder Heads Refurbished **
CAMSHAFT AND LIFTERS **
NEW Spark plugs.
NEW Steel Pushrod tubes. **
NEW Pistons & Ring pack.
NEW Barrels.

Full specification

CASE: Align bored as required. with or without bus mounts (Chemical cleaned inside/out and then painted Silver or black) **

NEW OR REFURBISHED FLYWHEEL: Supplied with a 4 dowel 200mm 12v Stock weight flywheel (Please say if you need to keep your 180mm) **

**Return engine should be un seized and the core components re-usable after moderate machine work. (Core parts are crankcase, crank, rods, rockers, heads. If these are damaged an agreement can be made on cost of sourcing replacement)

NEW or refurbished Rocker covers.**
NEW MAIN BEARINGS.
NEW BIG ENDS.
NEW CAM BEARINGS.
NEW FLYWHEEL 200mm 12v.
NEW Elring silicone Flywheel oil seal.
NEW Elring Gasket set.
Rocker Set Refurbished **
CONRODS: VW forged conrods checked and new bushes as required.
End float set to correct specification.
Supplied with remaining gasket set for fitting your ancillaries.
Looking for a TURN KEY based on a refurbished engine, Ready to bolt into your vehicle!
Turn Key options
SINGLE CARB:
TWIN CARB:

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-005

1641cc Twin Port Refurbished Long Block/TurnKey option Stock or Mild Performanc

From £2,199.00From £1,979.10Exclusive of VAT

No exhaust or clutch included

BALANCED CRANK: Genuine VW reground as required & Dynamically Balanced. (who else builds refurb engines like this?)

CASE: Align bored as required. with or without bus mounts (Chemical cleaned inside/out and then painted Silver) **

Refurbished Twin Port (or single port) Long Block
Refurbished Cylinder Heads
CAMSHAFT AND LIFTERS **
NEW Spark plugs.
NEW Steel Pushrod tubes. **
NEW Pistons & Ring pack.
NEW Barrels.
NEW or refurbished Rocker covers.**

Full specification

NEW FLYWHEEL: Supplied with a 4 dowel 200mm 12v Stock weight flywheel (Please say if you need to keep your 180mm) **

**Return engine should be un seized and the core components re-usable after moderate machine work. (Core parts are crankcase, crank, rods. If these are damaged an agreement can be made on cost of sourcing replacement)

Build up refurbished Long Block using customer supplied parts (+ cost of parts required) 450 plus

NEW MAIN BEARINGS.
NEW BIG ENDS.
NEW CAM BEARINGS.
NEW FLYWHEEL 200mm 12v.
NEW Elring silicone Flywheel oil seal.
NEW Elring Gasket set.
Rocker Set Refurbished **
CONRODS: VW forged conrods checked and new bushes as required.
End float set to correct specification.
Supplied with remaining gasket set for fitting your ancillaries.
(Crank Pulley not included on long block builds)
Looking for a TURN KEY based on a refurbished engine, Ready to bolt into your vehicle!
Turn Key options
SINGLE CARB:
TWIN CARB:

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-006

BUILD YOUR OWN KIT - Aircooled Hut Super Stock 1600cc Twin port engine kit.

£3,399.00£3,059.10Exclusive of VAT

No exhaust or clutch included

The Aircooled Hut Super Stock 1600cc Twin port engine kit.Kit comes with everything needed to fully assemble your own long block engine.This kit consists of great quality parts and will give the average daily driver a great boost in horse power and torque without sacrificing MPG and reliability.Why bother spending on that 40 year old motor when you can have all new for this great price!

Good quality parts used.
New 1600 Crankcase,
Stock style vw Crankshaft
Crank gear set
Flywheel ,
Gland nut.
Conrods and rockers
Mild performance cam kit

Full specification

New twin port heads, head studs
Oil relief kit
Rocker cover set
Pushrods and tubes
Oil pump and cover.
bearings and gaskets.

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-007

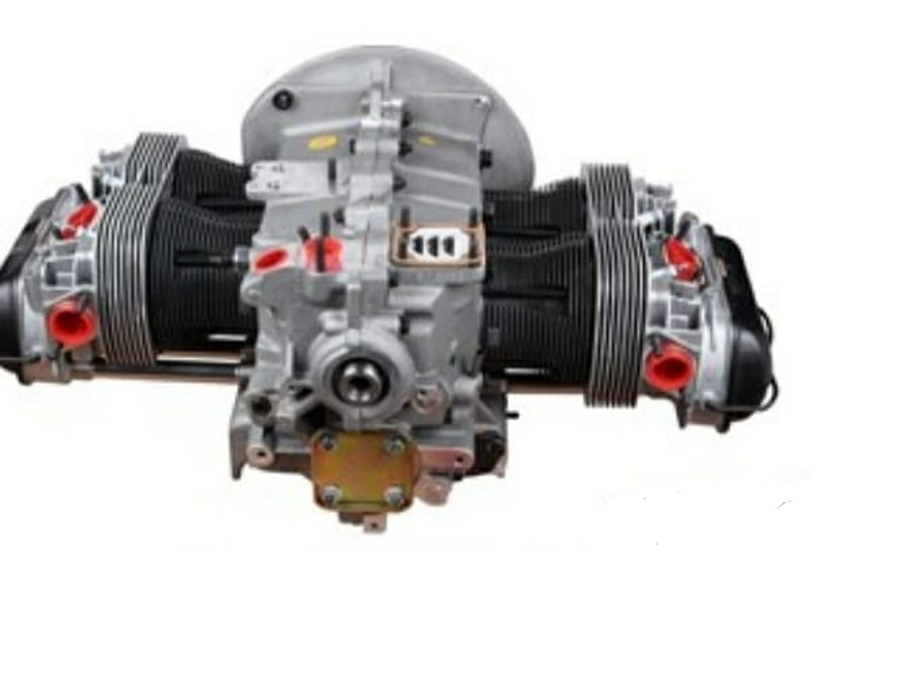

2110cc Long Block Bus Build - Built to order

£5,890.00£5,301.00Exclusive of VAT

No exhaust or clutch included

Twin port heads. (20% bigger ports, 3 angle valve job, Stainless steel 40x37.5 Valves, HD Springs, Chromoley fittings)

Full flow oil pump cover. (Or we can full flow differently for vehicles with an engine brace)

Dynamically Balanced / Blueprinted Engine build.
Bearing clearances, Endplay, ring gaps...)
Aluminium super case (Full flowed)
Forged Counterweight Crankshaft 82mm.
CB performance Uni-Tech clearance rods.
Mild cam kit,
Forged Rocker set.
Manton cut to length pushrods.

Full specification

All our Engine build customers get access to our Engine logger to view progress, Specification build details & images.

90.5 Thick wall Piston kit.
Heavy Duty Oil pump.
1.5qrt thin line deep sump,
200mm 8 dowel Flywheel
Chromoley glad nut/HD washer,
Clevite steel backed main bearings, rod bearing & double thrust cam bearings.
Bolt on rocker covers.
Scat Lash caps.
Supplied with a new Stock Oil cooler.
Bench tested for 30 minutes, Cam break in, Oil drained & inspected..
12 months warranty - Unlimited mileage.
Built for road use and great low end power.
Get in touch for a quote and full specification.
Price is for long block only, and is plus VAT

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-008

1956cc All New Long Block Engine PRICE FROM

£5,799.00£5,219.10Exclusive of VAT

No exhaust or clutch included

One of my favourite builds. You get the thickness of a 90.5mm barrel to remove any chance of the cracking.

And a 76mm stroker crankshaft making it very close to 2.0 litre capacity. Making it great for fuel economy, while keeping up with motorway traffic.

1956cc Long Block Using all new quality parts.
CB Performance Panchito heads.
Engle Performance camshaft ideal for Bus or Beetle.
Engle cam followers.
Heavy Duty valve springs.
Straight cut gears.
Autolinea magnesium case.
Full flowed for remote twist on Oil filter.

Full specification

Deep sump.
SCAT 5.4" forged iBeam rods
Forged 76mm crankshaft
90.5mm AA Performance piston kit
Heavy duty pushrods.
Aluminium sprung Pushrod tubes
Aluminium Rocker covers
German Rockers on bolt up shafts.
Lightened 8 dowel 200mm 12v Flywheel.
Can be built to turn key if required for extra.
1 year warranty.
www.Aircooledhut.co.uk
Help@aircooledhut.co.uk

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-009

2276cc LONG BLOCK - ALL NEW PARTS BUILD2021

£6,699.00£6,029.10Exclusive of VAT

No exhaust or clutch included

AUTOLINEA CRANKCASE – Mag case (Super Race case for Cranks bigger than 82mm or available as upgrade)

2110cc LONG BLOCK - ALL NEW PARTS BUILD 2021 (With option to make turn key engine)
ALL BRAND-NEW PARTS
Not a refurbished part in sight & no exchange required!
KEY COMPONENTS
Items with *** have options available
Full flowed case/pump with remote twist on filter (except for 1600/1641cc)
HEAD STUD KIT - 8mm chromoly with heavy duty nuts/washers
FORGED CRANKSHAFT – Counterweighted 8 Dowels Dynamically Balanced with Flywheel

Full specification

FLYWHEEL – 200mm 12 volt, Lightened 8 Dowel cast
GLAND NUT - 38mm Heavy duty Chromoly/Washer (36mm on 1600/1641cc)
*** CON RODS - Chromoly I-beam 5.4” VW Journal (H-beam upgrade)
*** CAMSHAFT KIT - Ranging from Engle w90 to w125 (Steel Straight Cut Upgrade)
CAM FOLLOWERS – Matched to camshaft
MAIN BEARING SET – Standard size
ROD BEARING SET - Standard size
CAM BEARING SET - Standard size Double Thrust (Single on 1600/1641cc)
***OIL PUMP - 26mm (30mm Pump with Oil Cooler Kits fitted)
OIL PUMP COVER – Full flow cover (Stock Steel type available on 1600/1641cc)
***OIL DRAIN PLATE – Stock Steel type (Billet Aluminium upgrade)
***PISTONS & BARREL KIT - Cast (Forged upgrade)
***PUSH-ROD TUBES – Stock Steel or Racing wide end (Aluminium sprung type upgrade)
***CYLINDER HEADS - Big valve mild ports
PUSH-ROD SET - Chromoly Steel
ROCKER SET - Bolt up shaft type (Forged 1.25 Ratio upgrade)
ROCKER COVERS - Aluminium Bolt On or clip on
GASKETS - Best quality Elring kit
OIL RELIEF KIT – Stock type
All engine build prices are plus VAT.
No Clutch or Exhaust is included in the prices.

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-010

1835cc LONG BLOCK - ALL NEW PARTS BUILD Stock or Performance.

£5,499.00£4,949.10Exclusive of VAT

No exhaust or clutch included

⁰1835cc - THICK WALLED BARRELS - These require the case/Heads to be cut the size usually used for 94mm pistons, but then using thick walled barrels to fill the space while using 92mm pistons. Gives that little extra over a 1776cc but still has the reliability!

AUTOLINEA CRANKCASE – Mag case (Super Race case for Cranks bigger than 82mm or available as upgrade)

LONG BLOCK - ALL NEW PARTS BUILD 2021 (With option to make turn key engine)
ALL BRAND-NEW PARTS
Not a refurbished part in sight & no exchange required!
KEY COMPONENTS
Items with *** have options available
STOCK BUILD
Full flowed case/pump with remote twist on filter (except for 1600/1641cc)
HEAD STUD KIT - 8mm chromoly with heavy duty nuts/washers

Full specification

*** CAMSHAFT KIT - Engle or Scat with Aluminium helical gear (Steel Straight Cut Upgrade)

Stock or Mild Performance Camshaft Choice: (Give your vehicle that extra boost. Effectively moving the rev range higher to gain more HP)

FORGED CRANKSHAFT – Counterweighted 8 Dowels Dynamically Balanced with Flywheel
FLYWHEEL – 200mm 12 volt, Lightened 8 Dowel cast
GLAND NUT - 38mm Heavy duty Chromoly/Washer (36mm on 1600/1641cc)
*** CON RODS - Chromoly I-beam 5.4” VW Journal (H-beam upgrade)
CAM FOLLOWERS – Matched to camshaft
MAIN BEARING SET – Standard size
ROD BEARING SET - Standard size
CAM BEARING SET - Standard size Double Thrust (Single on 1600/1641cc)
***OIL PUMP - 26mm (30mm Pump with Oil Cooler Kits fitted)
OIL PUMP COVER – Full flow cover (Stock Steel type available on 1600/1641cc)
DEEP SUMP – 1.5qrt
***OIL DRAIN PLATE – Stock Steel type (Billet Aluminium upgrade)
***PISTONS & BARREL KIT - Cast (Forged upgrade)
***PUSH-ROD TUBES – Stock Steel or Racing wide end (Aluminium sprung type upgrade)
***CYLINDER HEADS - Stock or Big valves
PUSH-ROD SET - Chromoly Steel
ROCKER SET - Bolt up shaft type (Forged 1.25 Ratio upgrade)
ROCKER COVERS - Aluminium Bolt On or stainless-steel clip on
GASKETS - Best quality Elring kit
OIL RELIEF KIT – Stock type .
Options List:
(Everything below can be selected on the options panel)
NEW Cylinder Heads:
Twin Port Heads: (Autolinea, Classic line, Empi)
Stock Camshaft
Engle W-100 (or Scat c25)
Engle W-110 (or Scat c35)
Pushrod Tubes:
Steel
Stainless Steel
Rocker Covers:
Stock
Bolt up Aluminium
Rockers: (required for cams w110 % above)
Bolt up Rocker shaft
Crank Case:
Used for Beetle
Used for Early bay and later
NEW MAG AS41
Flywheel:
180mm USED ONLY
200mm 4 dowel Full Weight
200mm 8 dowel Lightweight
Full Flow Options:
None
Full flow case/Cover (Without engine bars)
Full Flow In/Out Cover (Vehicles with engine bars)
Looking for a TURN KEY based on a refurbished engine, Ready to bolt into your vehicle!
Turn Key options
SINGLE CARB:
TWIN CARB:

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-011

1915cc LONG BLOCK - With TURN KEY option.ALL NEW PARTS Stock or Performance

£5,399.00£4,859.10Exclusive of VAT

No exhaust or clutch included

AUTOLINEA CRANKCASE – Mag case (Super Race case for Cranks bigger than 82mm or available as upgrade)

*** CAMSHAFT KIT - Engle or Scat with Aluminium helical gear (Steel Straight Cut Upgrade)

1915cc LONG BLOCK - ALL NEW PARTS BUILD 2021 (With option to make turn key engine)
ALL BRAND-NEW PARTS
Not a refurbished part in sight & no exchange required!
KEY COMPONENTS
Items with *** have options available
STOCK BUILD
Full flowed case/pump with remote twist on filter (except for 1600/1641cc)
HEAD STUD KIT - 8mm chromoly with heavy duty nuts/washers

Full specification

Stock or Mild Performance Camshaft Choice: (Give your vehicle that extra boost. Effectively moving the rev range higher to gain more HP)

Single Carb and manifold. New tinware, Alternator Kit with Stand, Fan kit, Mechanical Fuel Pump, Codan R9 Fuel Lines, New Distributor/Leads/Coil, Plugs

Twin 34 Carbs and manifold. New tinware, Alternator Kit with Stand, Fan kit, Mechanical Fuel Pump, Codan R9 Fuel Lines, New Distributor/Leads/Coil, Plugs

All engines are priced without an exhaust or heat exchanges. This is due to the varying styles available for various vehicles.

FORGED CRANKSHAFT – Counterweighted 8 Dowels Dynamically Balanced with Flywheel
FLYWHEEL – 200mm 12 volt, Lightened 8 Dowel cast
GLAND NUT - 38mm Heavy duty Chromoly/Washer (36mm on 1600/1641cc)
*** CON RODS - Chromoly I-beam 5.4” VW Journal (H-beam upgrade)
CAM FOLLOWERS – Matched to camshaft
MAIN BEARING SET – Standard size
ROD BEARING SET - Standard size
CAM BEARING SET - Standard size Double Thrust (Single on 1600/1641cc)
***OIL PUMP - 26mm (30mm Pump with Oil Cooler Kits fitted)
OIL PUMP COVER – Full flow cover (Stock Steel type available on 1600/1641cc)
DEEP SUMP – 1.5qrt
***OIL DRAIN PLATE – Stock Steel type (Billet Aluminium upgrade)
***PISTONS & BARREL KIT - Cast (Forged upgrade)
***PUSH-ROD TUBES – Stock Steel or Racing wide end (Aluminium sprung type upgrade)
***CYLINDER HEADS - Stock or Big valves
PUSH-ROD SET - Chromoly Steel
ROCKER SET - Bolt up shaft type (Forged 1.25 Ratio upgrade)
ROCKER COVERS - Aluminium Bolt On or stainless-steel clip on
GASKETS - Best quality Elring kit
OIL RELIEF KIT – Stock type
Options List:
(Everything below can be selected on the options panel)
NEW Cylinder Heads:
Twin Port Heads: (Autolinea, Classic line, Empi)
Stock Camshaft
Engle W-100 (or Scat c25)
Engle W-110 (or Scat c35)
Pushrod Tubes:
Steel
Stainless Steel
Rocker Covers:
Stock
Bolt up Aluminium
Rockers: (required for cams W-110 above)
Bolt up Rocker shaft
Crank Case:
Used for Beetle
Used for Early bay and later
NEW MAG AS41
Flywheel:
180mm USED ONLY
200mm 4 dowel Full Weight
200mm 8 dowel Lightweight
Full Flow Options:
None
Full flow case/Cover (Without engine bars)
Full Flow In/Out Cover (Vehicles with engine bars)
Looking for a TURN KEY based on a refurbished engine, Ready to bolt into your vehicle!
Turn Key options
SINGLE CARB:
Crankshaft & Alternator Pulley (Steel)
TWIN CARB:

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-012

1956cc All New Parts LONG BLOCK Engine

£5,850.00£5,265.00Exclusive of VAT

No exhaust or clutch included

Ideal for a bus with the added torque from the stroker crank. Parts can be changed to suit your requirements/vehicle.

Cylinder Heads :Dual Port Cylinder Heads, Stainless Steel Valves 35.5X32 (Upgrade to port/polished big valves, ask for details)Crank dynamically balanced.

1956cc ALL NEW PARTS LONG BLOCK (Full warranty)
This is built using a 76mm stroked crank and 90.5mm Pistons.
New Forged Counter weighted Crankshaft,
ibeam Con Rods 5.394" Length,
VW Journal.
New STD Light weight Flywheel
Hypereutectic Piston & Cylinder kit Cast
Chromoly 36mm Gland Nut with H.D. Washer

Full specification

High Quality Rod Bearings
High Quality Cam Bearing Set
High Quality Complete Gasket set with Red Silicone Main Seal
UPGRADE TO FORGED PISTONS.
UPGRADE TO 1.4 RATIO ROCKERS.
JUST ASK!
(No exchange required)
Get in touch for a personal quote to your specification.

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-013

NEW Aircooled Hut Super Stock 1776cc Twin port Long block engine

£4,940.00£4,446.00Exclusive of VAT

No exhaust or clutch included

The Aircooled Hut Super Stock 1776cc Twin port long block engine comes fully assembled to a long block, for you to fit your own ancillaries.

Our super stock engine, comes fitted with a mild performance camshaft for an extra boost over a stock engine.

(Or we can do this for an extra charge)
ALL of our engines come dynamically balanced.
Built by time served professionals you can trust.
All Bearing clearances are checked and set.
Piston rings gapped.
Flywheel end play set.
Leak down test & compression test done to ensure the engine works perfectly.
Built using great quality parts.

Full specification

This build has the best parts and will give the average daily driver a great boost in horse power and torque without sacrificing MPG and reliability.

Why bother spending on that 40 year old motor when you can have all new for this great price!

No Clutch or Exhaust is included in the price, as we would need to discuss what system is required.

Twin port cylinder heads.
Mild performance camshaft.
8 dowel Forged counterweight Crankshaft.
Lightened 8 dowel flywheel.
Forged Gland nut.
VW or I-beam Conrods
Fully refurbished VW Rockers
Bolt on rocker covers.
Steel pushrods. (Rockers should be set to loose zero)
Price is based on us taking your old engine as an exchange (or pay a £400 surcharge)
All engine build prices are plus VAT.
OPTIONS AVAILABLE FOR EXTRA COST.
Deep sump
Full flow for remote Oil filter.
Plus much more so please ask.

Get a Quote WhatsApp Call

10% Sale

Part no. AH-LB1-014

Aircooled Hut NEW Super Stock 1600cc Twin port Long block eng

£4,489.00£4,040.10Exclusive of VAT

No exhaust or clutch included

The Aircooled Hut Super Stock 1600cc Twin port long block engine comes fully assembled to a long block, for you to fit your own ancillaries.

Our super stock engine, comes fitted with a mild performance camshaft for an extra boost over a stock engine.

(Or we can do this for an extra charge)
ALL of our engines come dynamically balanced.
Built by time served professionals you can trust.
All Bearing clearances are checked and set.
Piston rings gapped.
Flywheel end play set.
Leak down test & compression test done to ensure the engine works perfectly.
Built using great quality parts.

Full specification

This build has the best parts and will give the average daily driver a great boost in horse power and torque without sacrificing MPG and reliability.

Why bother spending on that 40 year old motor when you can have all new for this great price!

Twin port cylinder heads.
Mild performance camshaft.
8 dowel Forged counterweight Crankshaft.
Lightened 8 dowel flywheel.
Forged Gland nut.
VW or I-beam Conrods
Fully refurbished VW Rockers
Bolt on rocker covers.
Steel pushrods. (Rockers should be set to loose zero)
Price is based on us taking your old engine as an exchange (or pay a £400 surcharge)
OPTIONS AVAILABLE FOR EXTRA COST.
Deep sump
Full flow for remote Oil filter.
Plus much more so please ask.

Get a Quote WhatsApp Call

Go full turn-key Type 4 / WBX Gearboxes Get a quote
